RDX

REAR DOOR HEAT EXCHANGERS

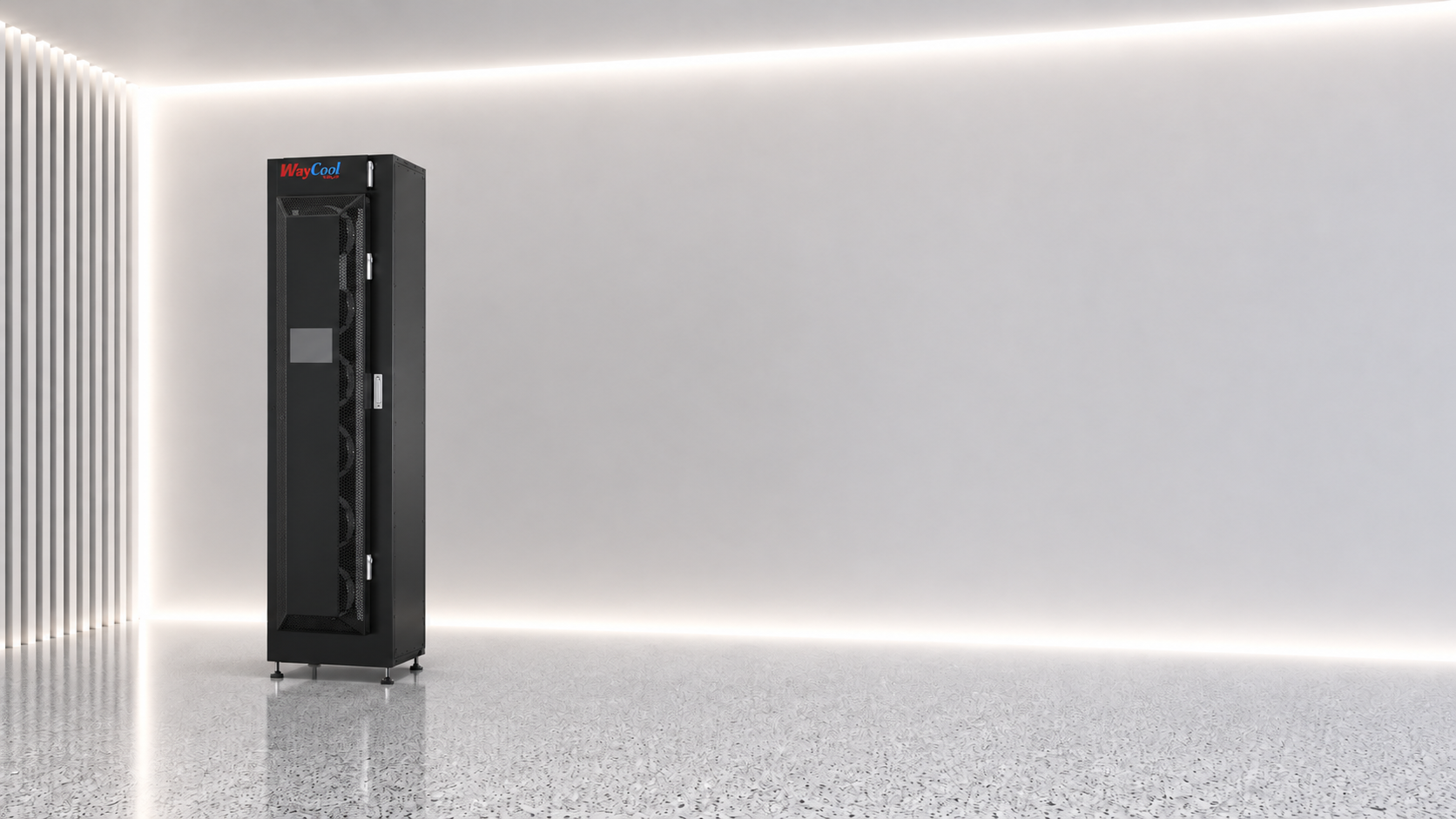

WayCool Active Rear Door Heat Exchangers remove server heat at the rack, before it reaches the room. Built for high-density AI and HPC loads, they pair EC fans with a low-pressure-drop coil and integrate smoothly into both new construction and retrofit installations.
Request a Quote

RDX

REAR DOOR HEAT EXCHANGERS

WayCool Active Rear Door Heat Exchangers remove server heat at the rack, before it reaches the room. Built for high-density AI and HPC loads, they pair EC fans with a low-pressure-drop coil and integrate smoothly into both new construction and retrofit installations.
Request a Quote

Applications

Data Center

Fan Coil Wall Features

RSHW-removebg-preview

Configurable Coil Design

WayCool Rear Door Heat Exchangers are designed with flexibility at their core. Every coil is selected to match your rack density, water temperature, and airflow requirements, aligning cooling performance with your data center’s thermal load, energy usage, and total cost of ownership.

Coil Configuration Options

  • Row quantity adjustable to match the required cooling capacity
  • Fin spacing optimized for airflow resistance vs. heat transfer trade-offs
  • Copper tube/aluminum fin construction
  • Multiple circuit configurations for chilled water or glycol systems

Specifications Table

Model W x L x H Airflow Range Cooling Capacity Range Maximum TSP @ Peak Airflow Fan Maximum Fluid Flow Rate
mm ft m³/h CFM KW Pa Inch w.g. Qty m³/h GPM
RDX-42-600 600 x 387 x 1948 23.6 x 15.2 x 76.7 5711 3360 25-70 209 0.84 5 57.7 22
RDX-42-800 800 x 387 x 1948 31.5 x 15.2 x 76.7 6545 3850 30-80 114 0.46 5 57.7 22
RDX-48-600 600 x 387 x 2242 23.6 x 15.2 x 88.3 6664 3920 30-100 214 0.86 6 57.7 22
RDX-48-800 800 x 387 x 2242 31.5 x 15.2 x 88.3 7820 4600 35-120 119 0.48 6 57.7 22
